Zoom Enabled Rooms

Zoom enabled rooms allow an instructor to teach in-person and virtual classes at the same time. If you are utilizing a Level 3 Zoom enabled room, you will either have a button panel or a touch screen panel to manage the classroom’s Zoom technology.

  • Audio Settings

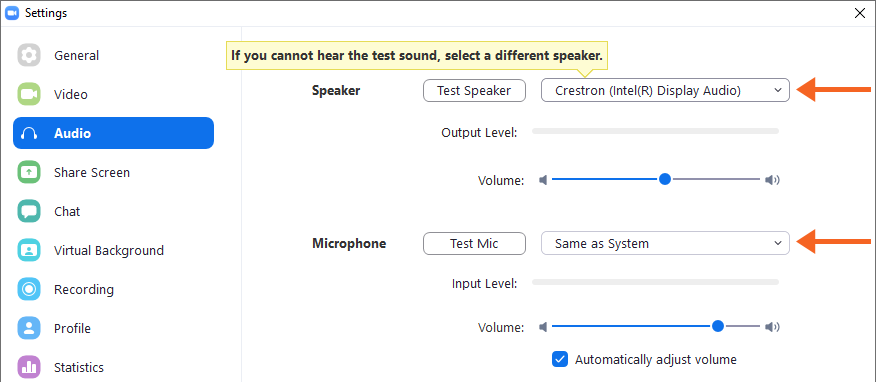

    To start a class in a Zoom enabled room, you need to ensure the correct speaker is selected in the Zoom Audio settings. Depending on the system in the room, it will either be Crestron (Intel® Display Audio) or Extron HDMI (Intel ® Display Audio). The microphone should be Same as System or Jack mic .

    Select Crestron

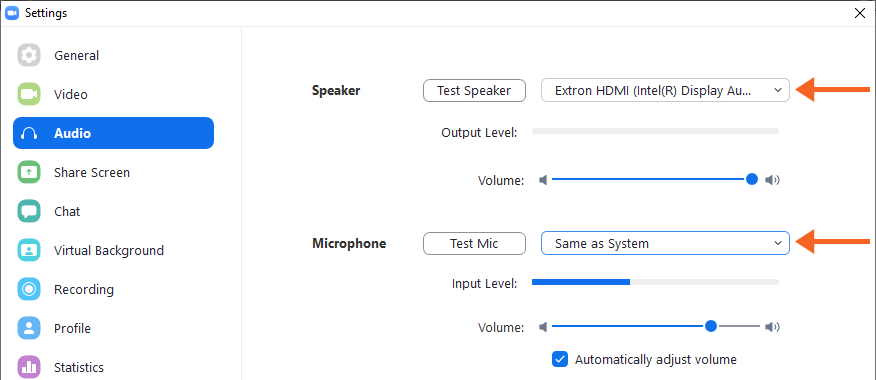

    Select Extron

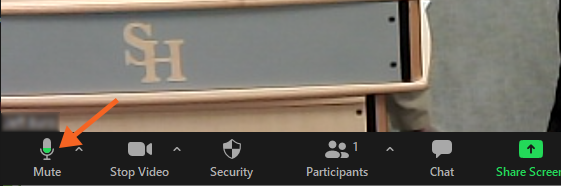

    If at any point you need to mute or unmute the audio for those that are online with Zoom, you must use the Mute feature in the Zoom options and not the panel.

    Zoom Mute

    NOTE: Mute features on the classroom panels will not affect those listening via Zoom, only those in the classroom.

  • Camera and Microphones

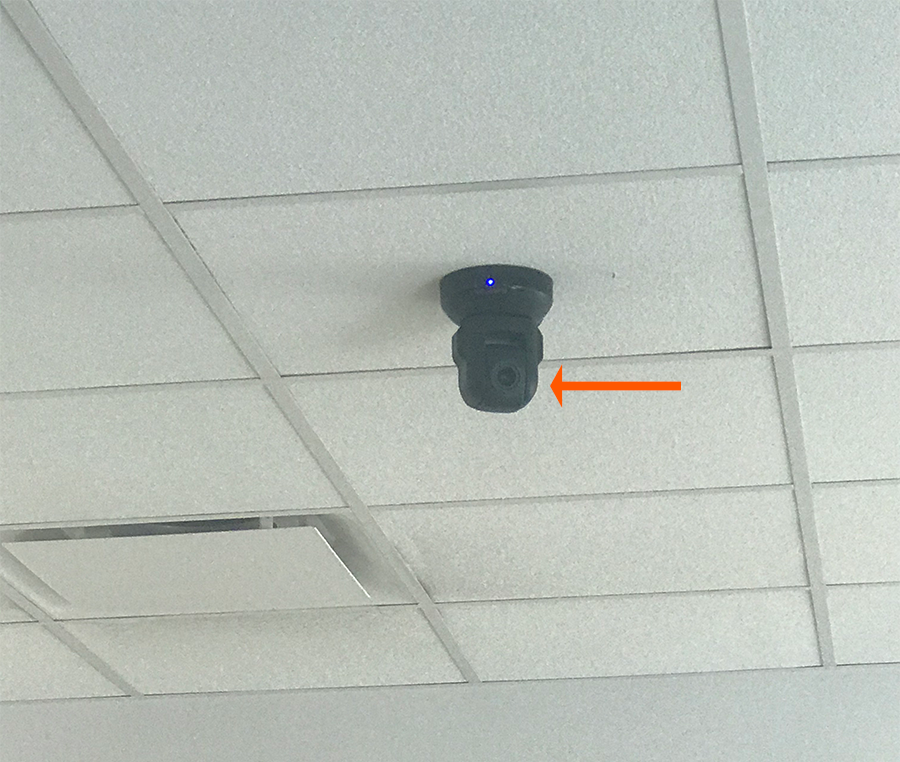

    Zoom enabled rooms provide cameras for those using Zoom to see the instructor as well as whiteboards in the classrooms. The camera will be in the ceiling of the classroom facing the podium. Once you select to enable the camera in Zoom, this is the camera that will be utliized.

    Classroom Camera

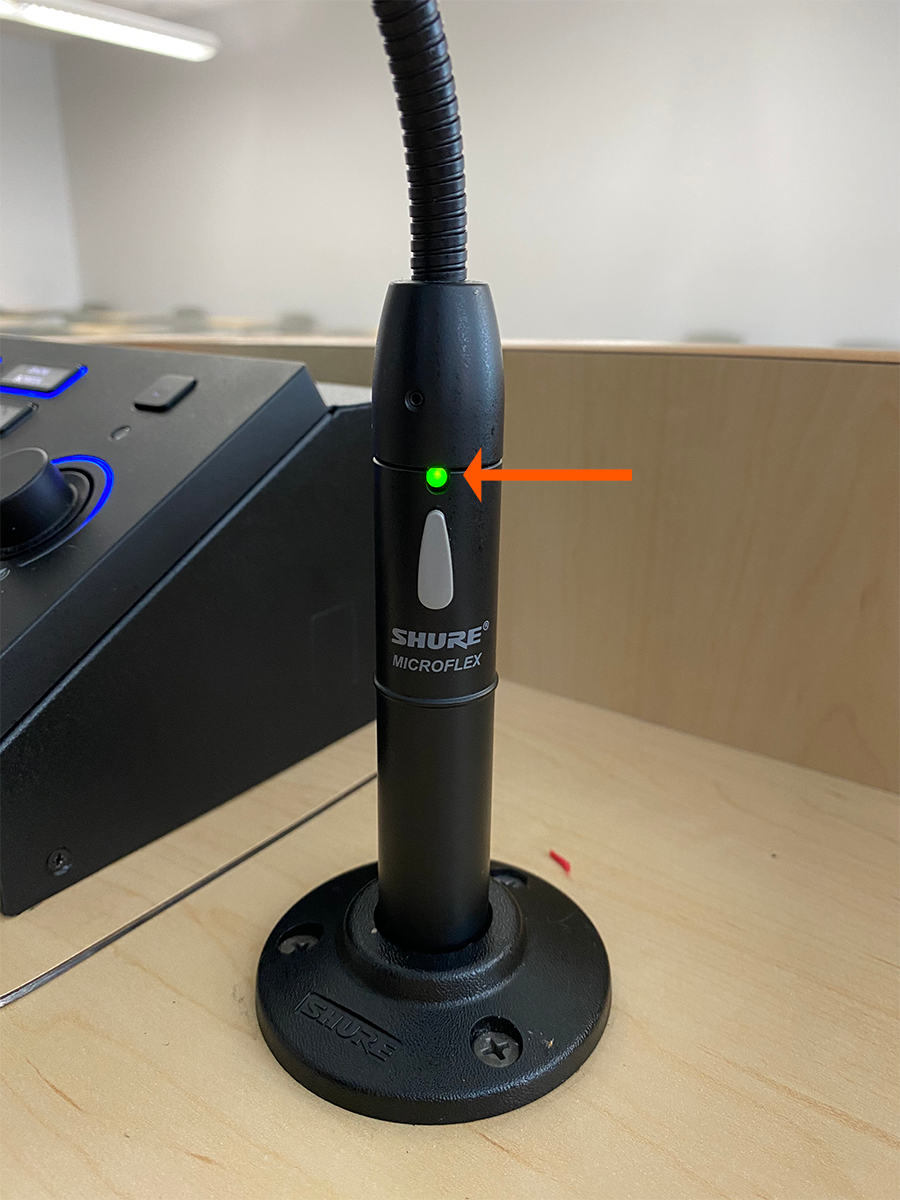

    Classrooms will also be equipped with a podium mic and a lapel mic (Level 3 classrooms only). Both can be used with Zoom once same as system or jack mic is selected in Audio Settings. You will need to ensure the podium mic is on, which is indicated by the green power button.

    Podium Mic On

    If an instructor prefers to use a lapel mic, one is provided in each classroom and can be used when same as system or jack mic is selected in Audio Settings. Proper placement of the mic is to place your right hand over your heart and place the mic at the top of the thumb.

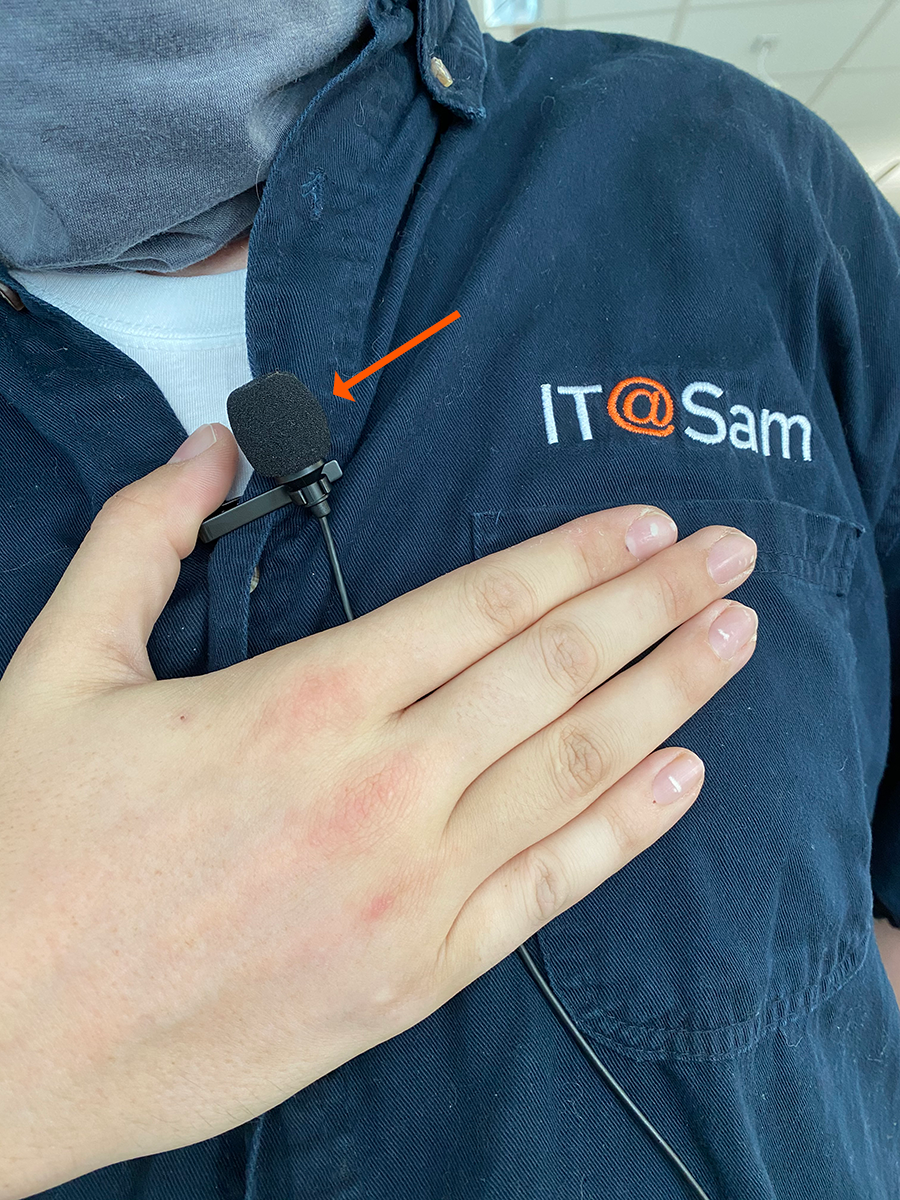

    Lapel Mic Placement

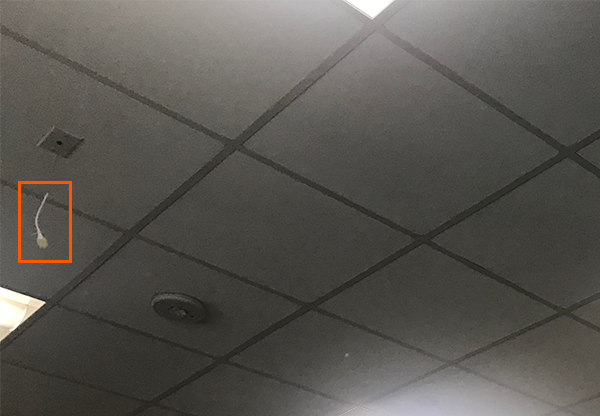

    Larger classrooms provide ceiling microphones for students that are using Zoom for the class to be able to hear the students that are in the physical classroom speak. These mics are integrated into Zoom so once same as system or jack mic is selected in Audio Settings, they will be enabled.

    Ceiling Mics

  • Button Panel

    In classrooms that have a button panel, there are only three buttons to use for Zoom enabled rooms. They control the camera angle that participants will see on the Zoom call.

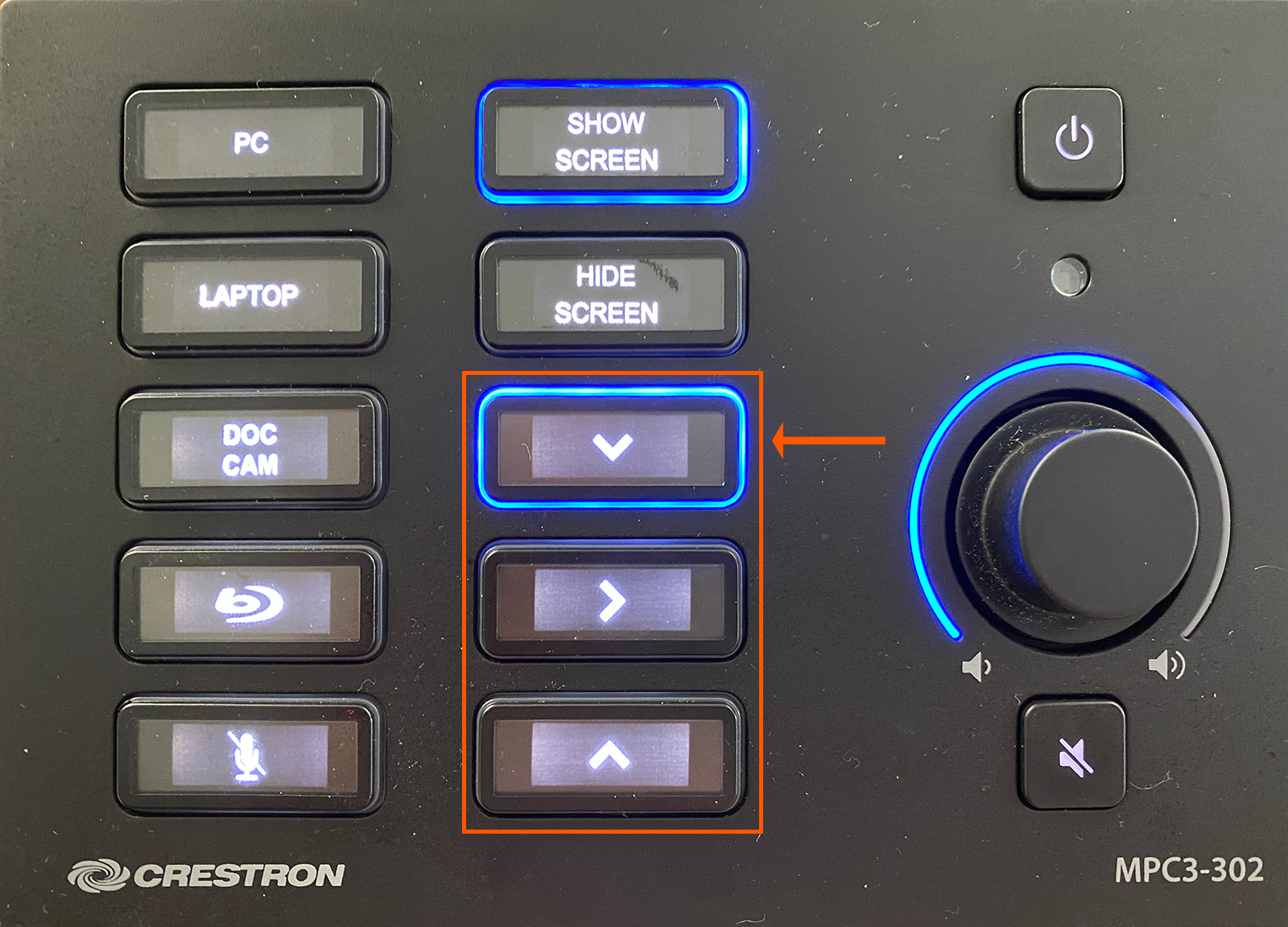

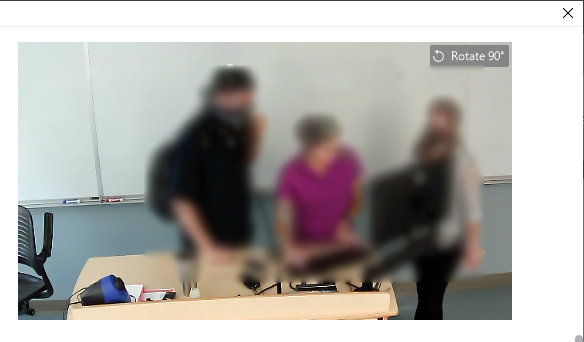

    The first arrow, pointed down, focuses the camera on the podium.

    Button Panel Arrows

    Button Panel Podium Zoom

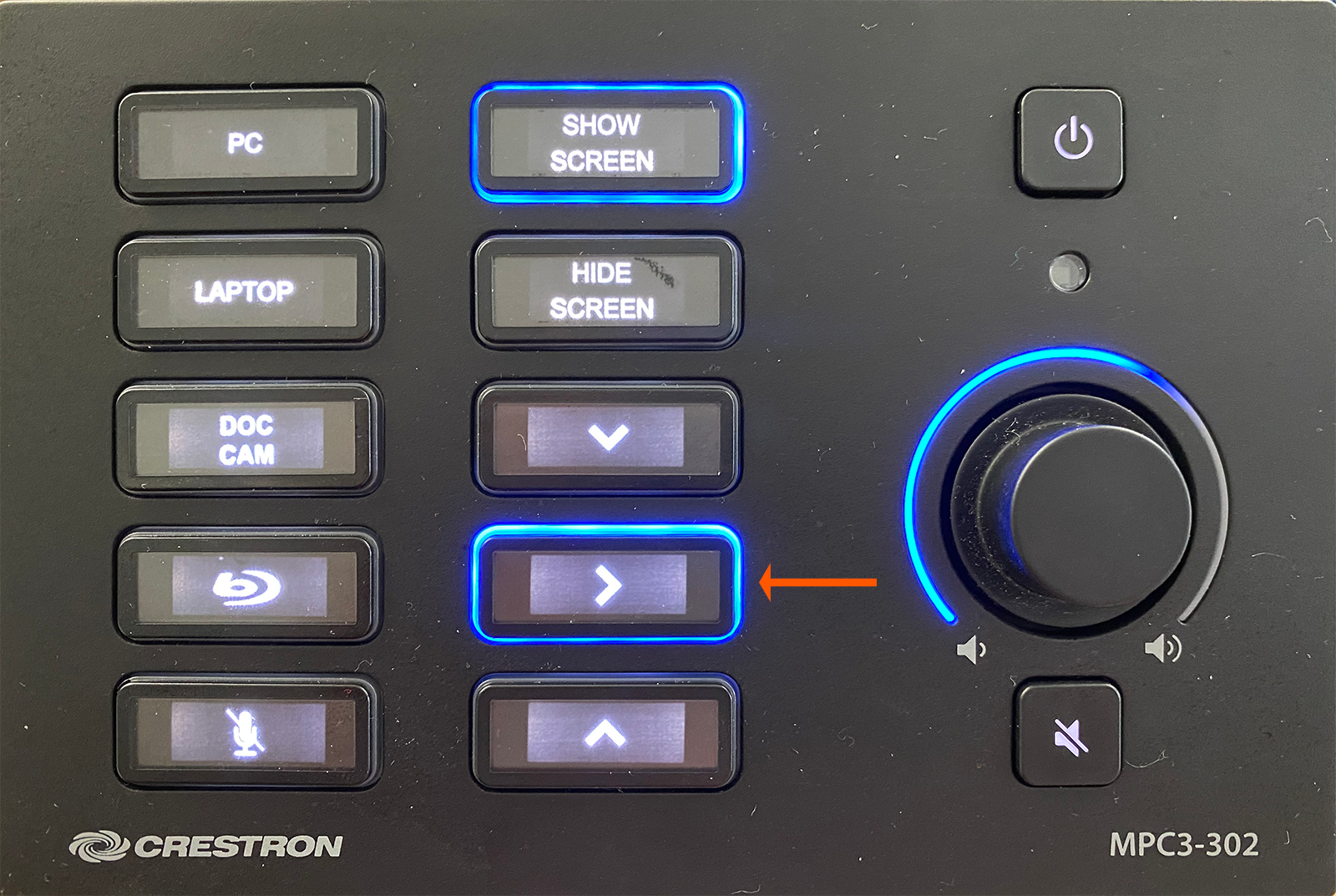

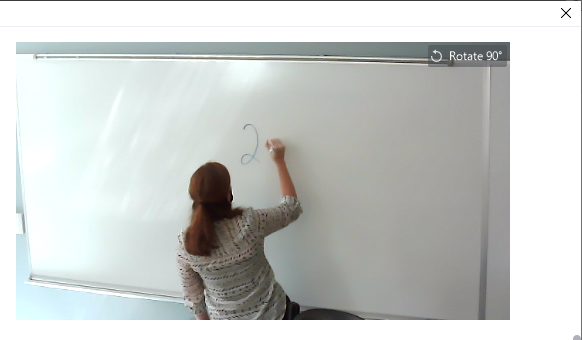

    The second arrow, pointed to the left or right depending on the classroom, focuses the camera on the whiteboard. This arrow will point in the direction of the specific whiteboard that the camera will focus on if there is more than one whiteboard in a classroom.

    Button Panel Side Arrow

    Button Panel Whiteboard Zoom

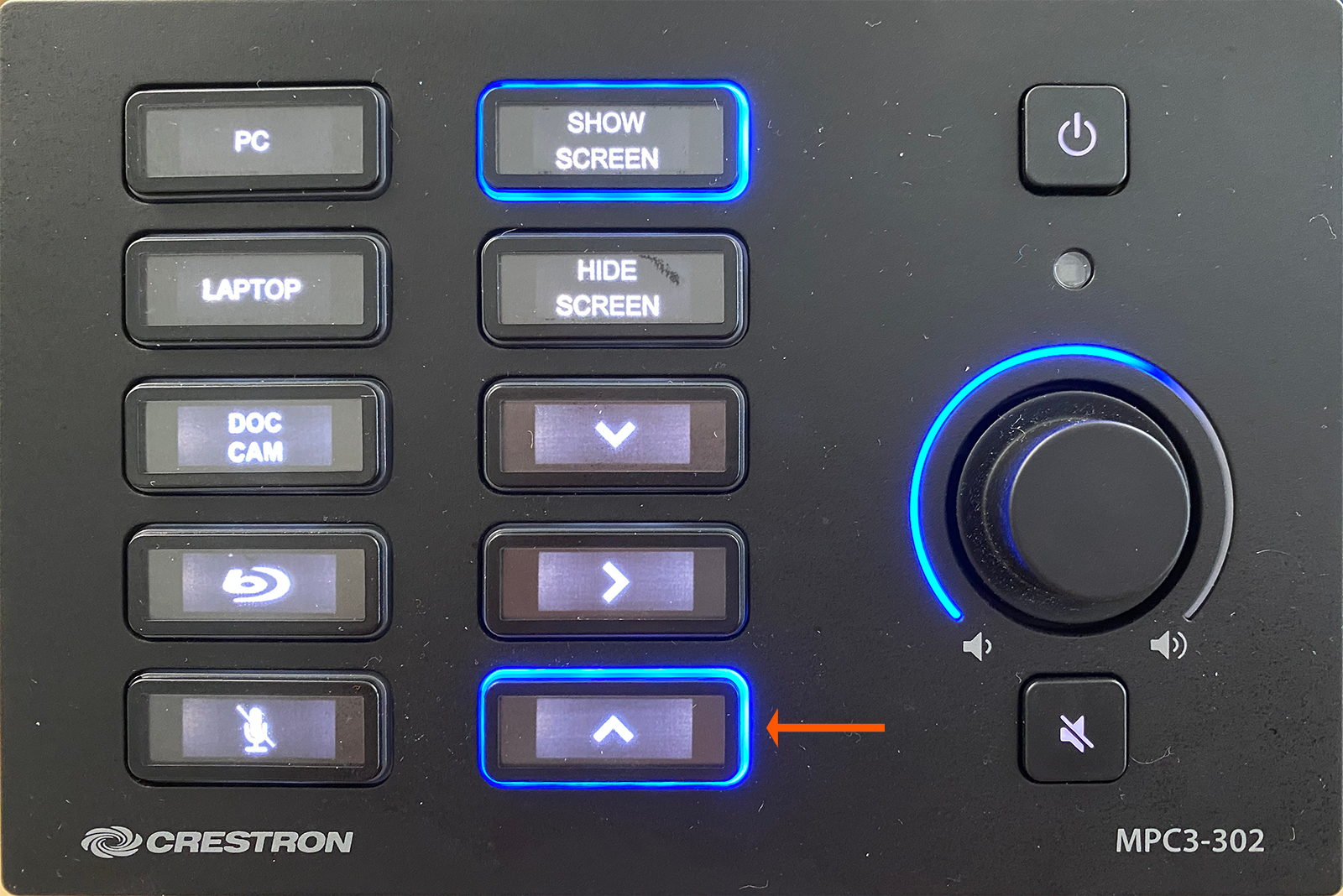

    The third arrow, pointed up, provides a wide-angle view of the front of the classroom.

    Button Panel Up Arrow

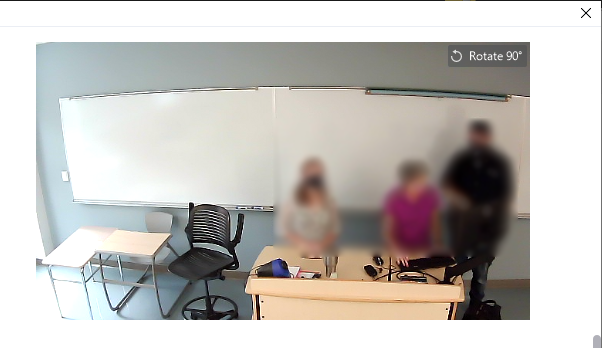

    Button Panel Wide Angle Zoom

  • Touch Panel

    To utilize the Touch Panel, touch the screen to power the panel on.

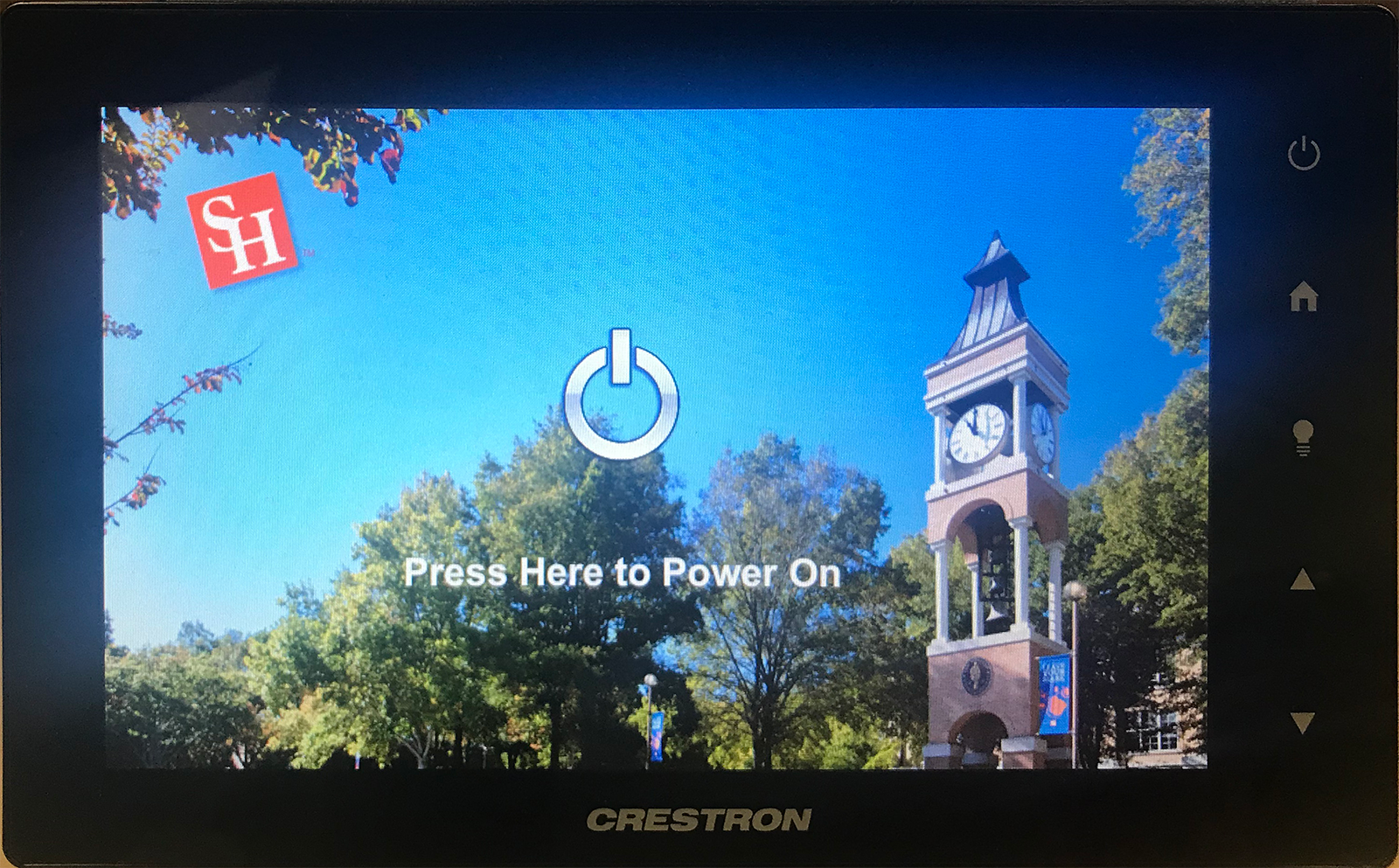

    Touch Panel Power On

    As the system is powering on, instructions will remind you to select Mic In if an audio pop up displays on the computer.

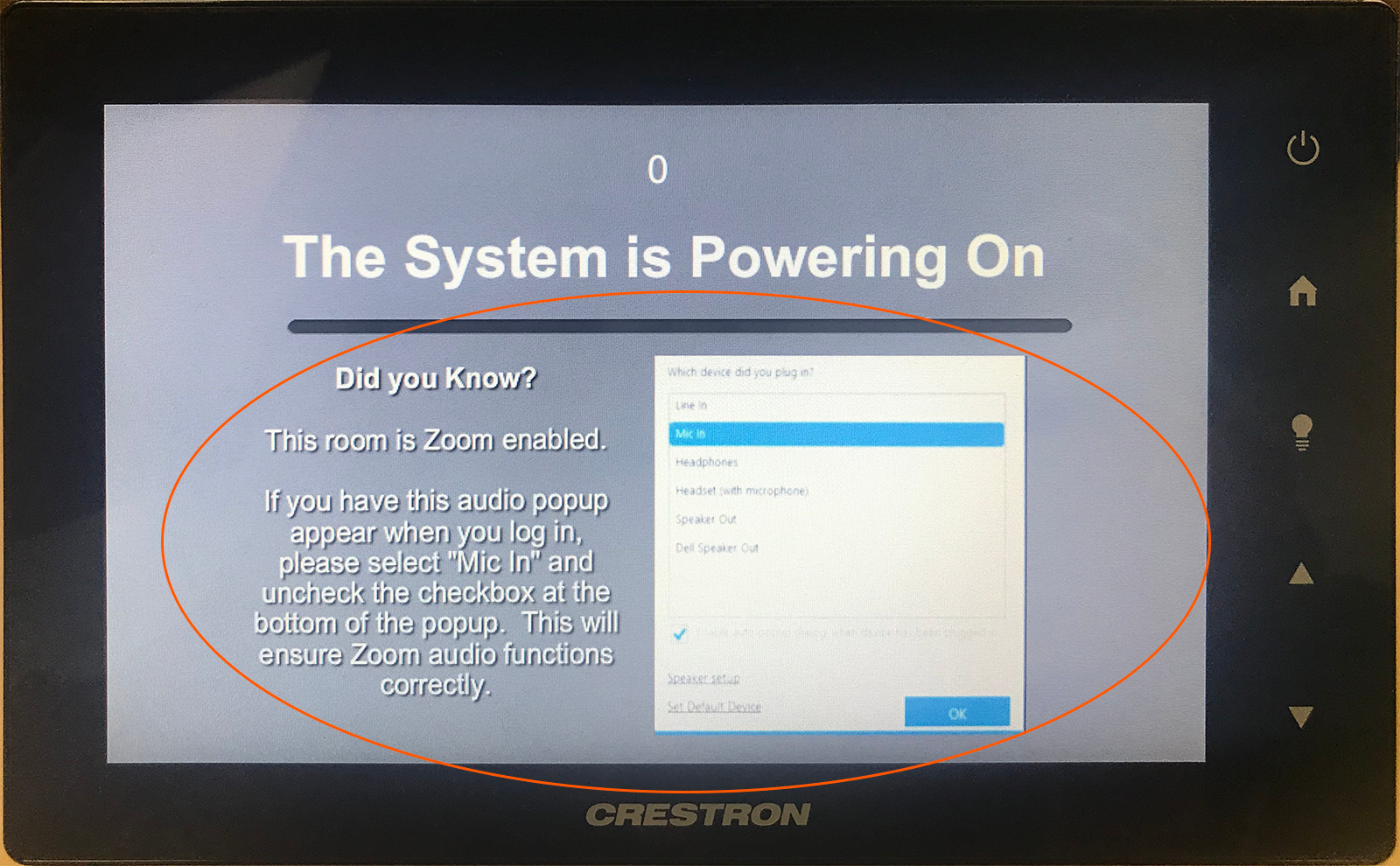

    Touch Panel Mic Info

    The touch panel allows the instructor to change the zoom of the camera classroom.

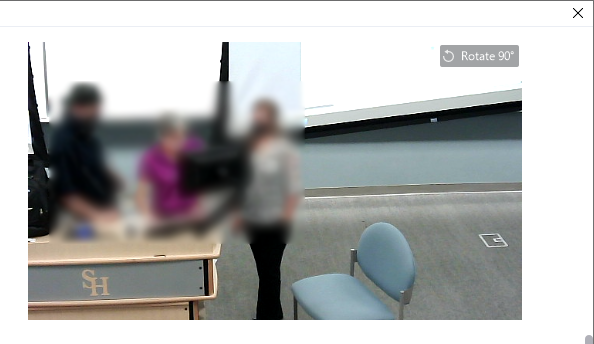

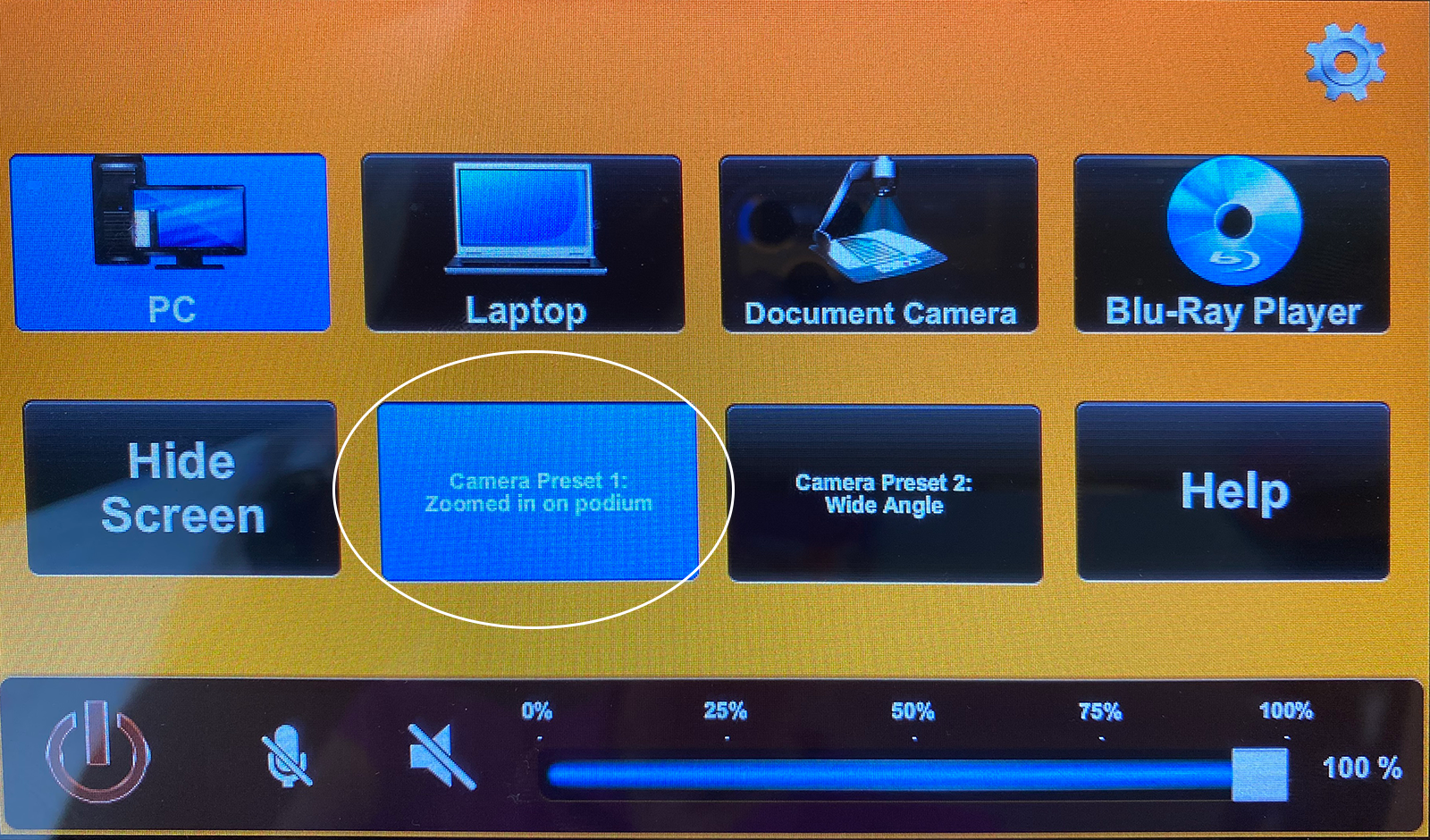

    The first option is Podium view.

    Touch Panel Podium View

    Touch Panel Podium Zoom

    The other option is Wide angle.

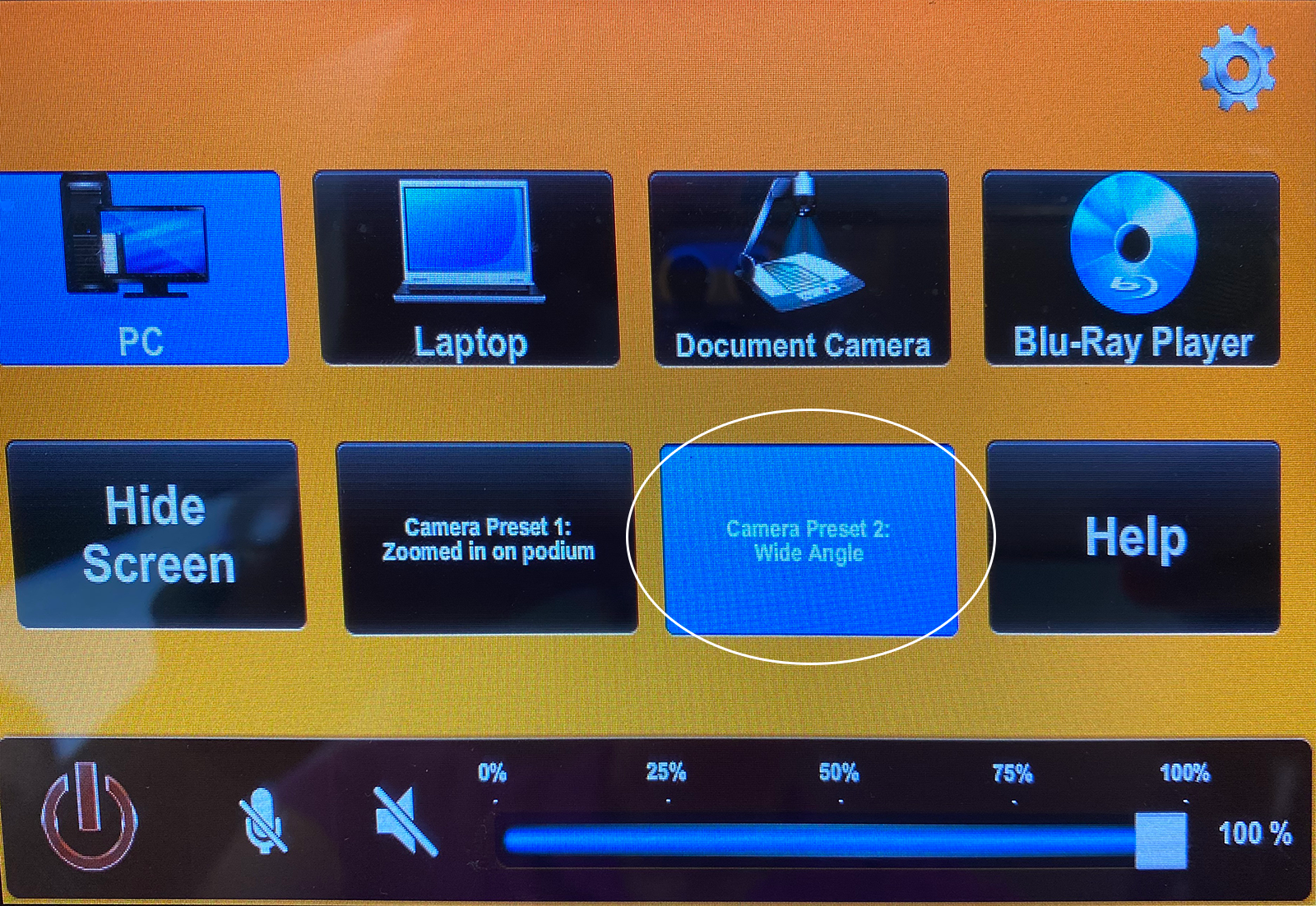

    Touch Panel Wide Angle

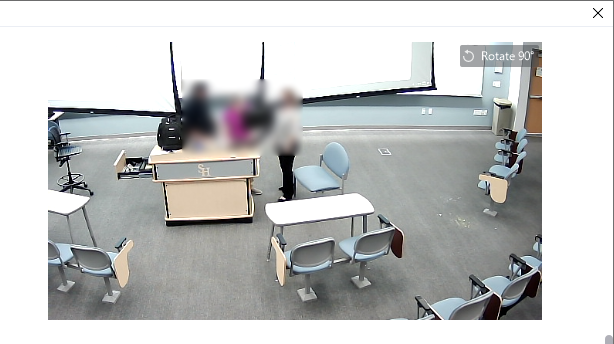

    Touch Panel Wide Angle Zoom

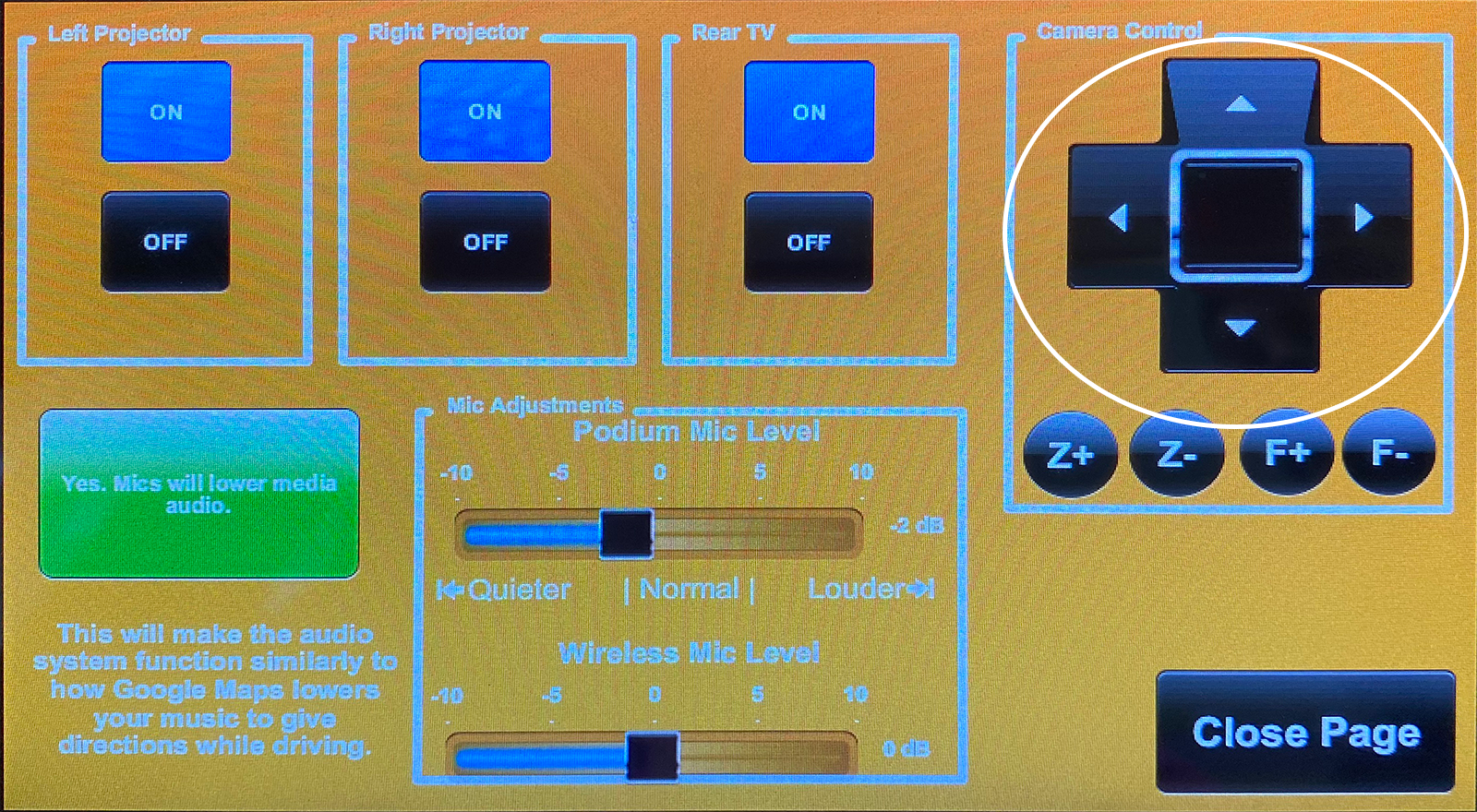

    If the instructor would prefer the camera to be pointed at a white board or another location in the classroom, touch the Settings icon and use the arrow pad in the Camera Control area to adjust the position of the camera.

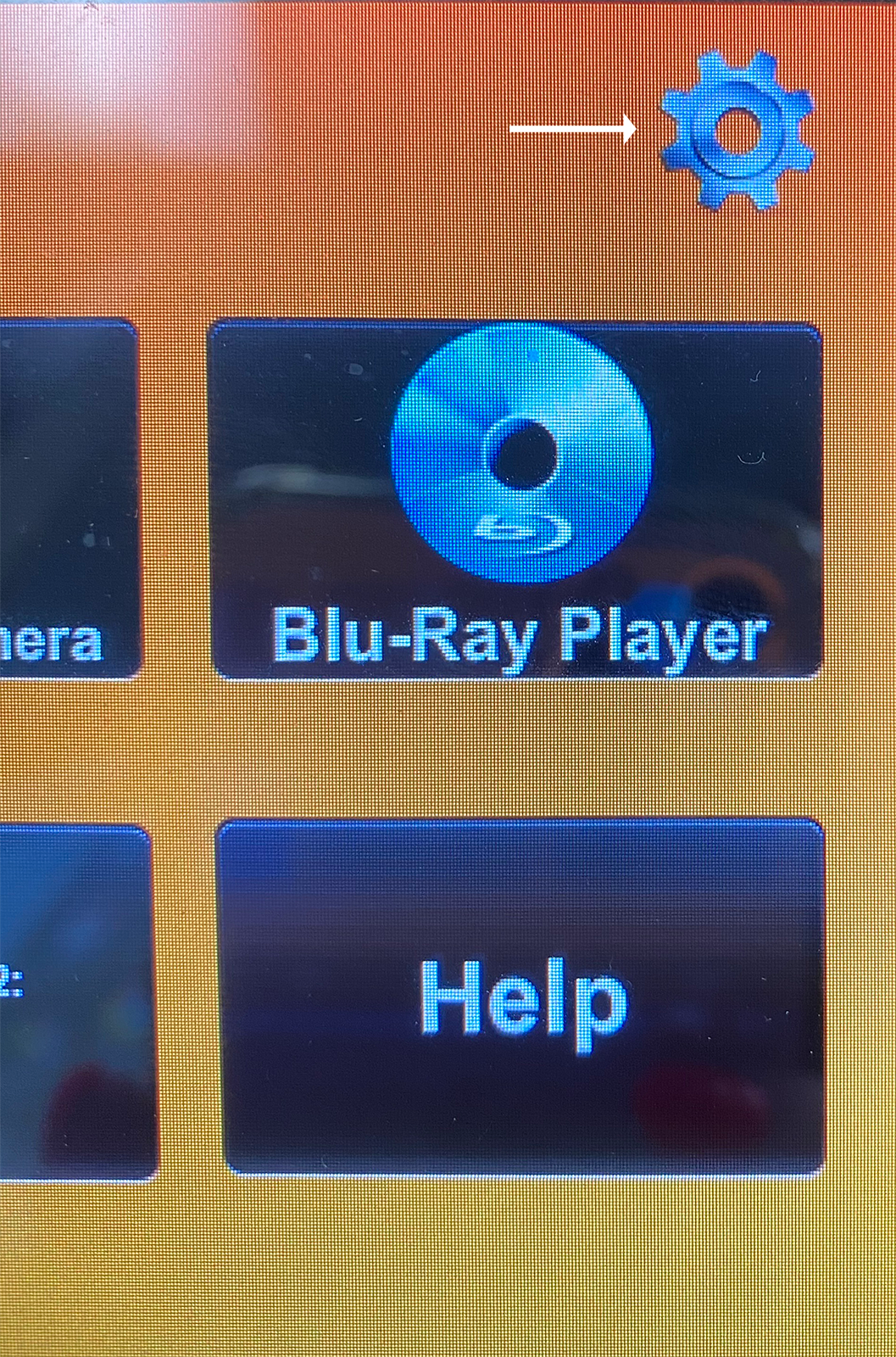

    Touch Panel Settings

    Touch Panel Camera Control

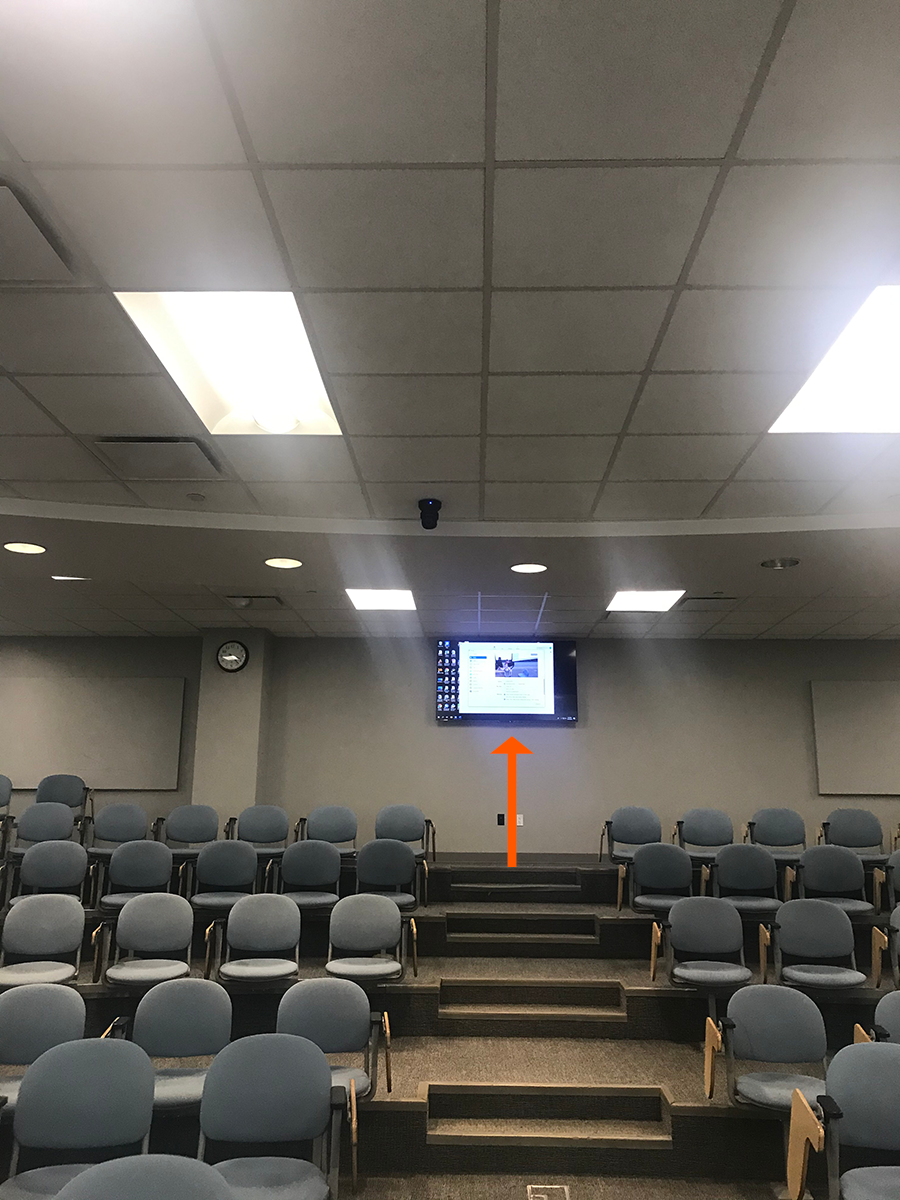

    In larger classrooms, there is a TV in the back of the classroom that allows the instructor to see what is being displayed on the monitor.

    TV for Prof
