Zoom and Document Cameras

A document camera allows faculty to display documents, and even write on documents for students to see. Document cameras sit on a surface and point down at a document that student can see while faculty displays, works on or annotates the document. Also, many document cameras are connected directly to a computer, which allows those learning in a remote environment to see the same thing as those in the classroom see.

You can view the instructions on how a document camera work in the classroom and with Zoom, select the doc cam below and follow these instructions.

  • Wolfvision

    To use the Wolfvision doc camera in a classroom, watch the video or follow the step-by-step instructions below the video.

    1. Power on the document camera
    2. Push the doc cam button on the control panel
    3. Then place the document on the document camera.

    This will display the document on the projector screen.

    To use the Wolfvision doc camera with Zoom in a classroom, watch the video or follow the step-by-step instructions below the video.

    Power on the system using the control panel, log into the computer, open and log into Zoom.

    Open the drawer where the doc cam is and lift the arm of the doc cam to power on.

    wolfvision

    Open the VSolution software from the computer desktop.

    vSolution Icon

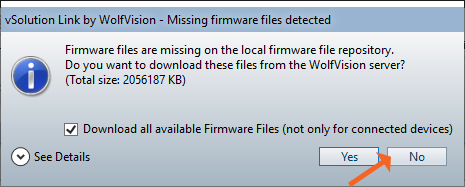

    If a message regarding firmware displays, select No.

    Firmware Notice

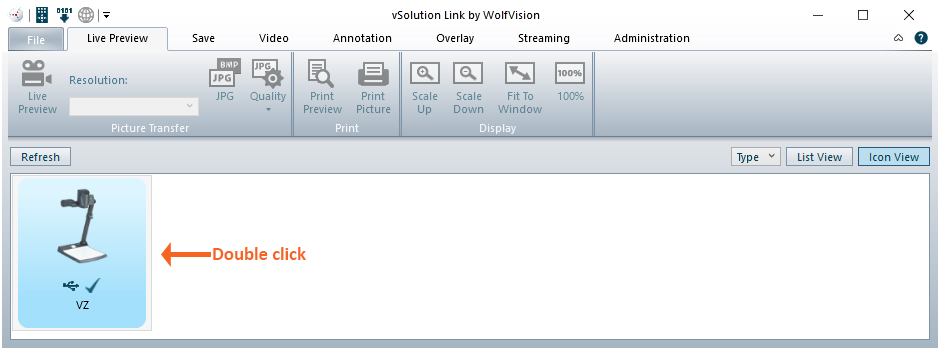

    In the vSolution Link by WolfVision dialogue box, double click on the doc cam in the list.

    Doc Cam List

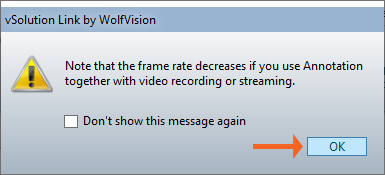

    If a message regarding frame rate displays, select OK.

    Frame Rate Notice

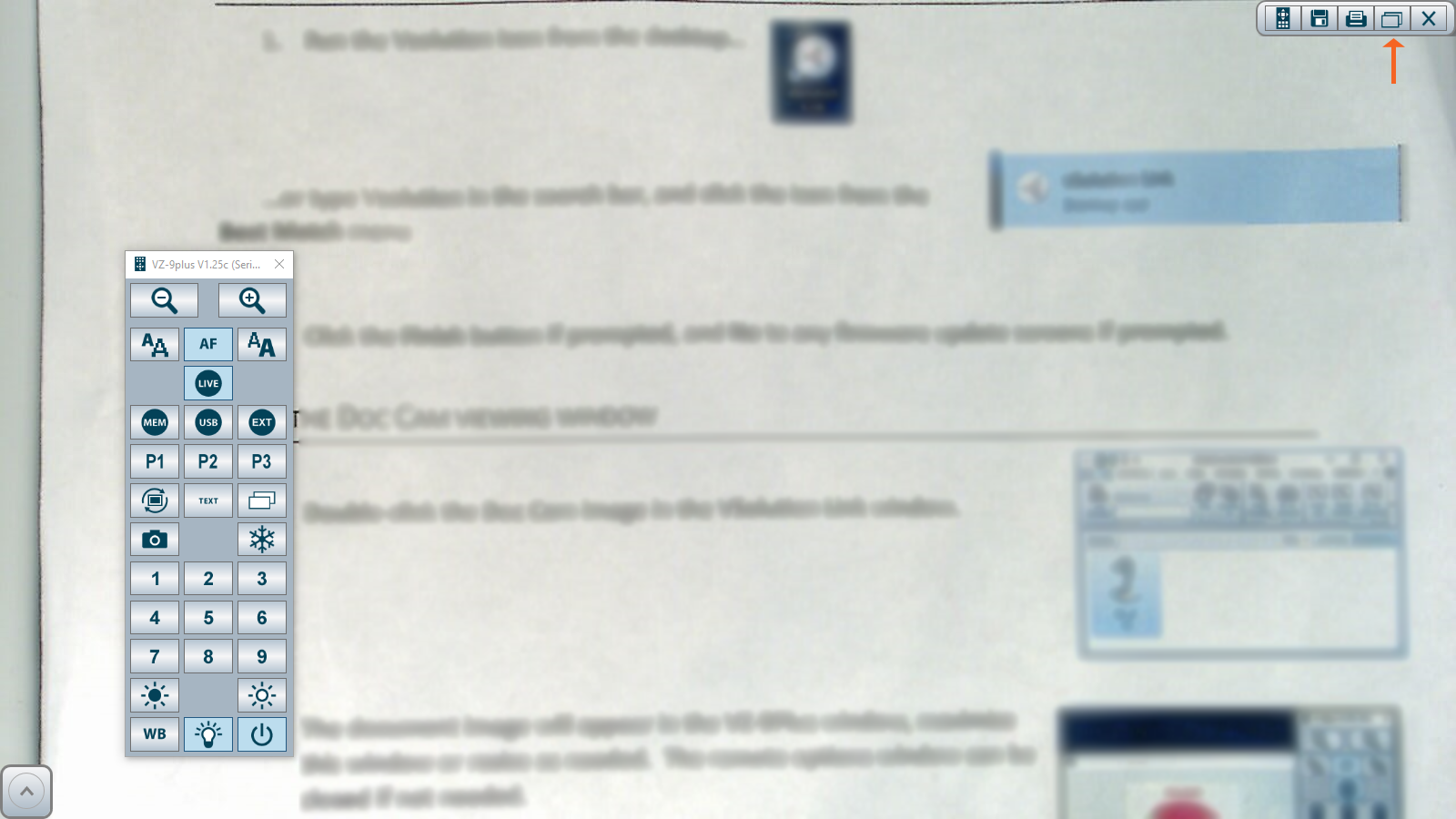

    The software will launch. If the screen is not already maximized, you can select the maximize icon next to the X in the upper right corner.

    Wolfvision Share Screen Maximize

    If the Zoom meeting has not been started yet, start the Zoom meeting.

    In the Zoom meeting options, select Share.

    Zoom Options Share

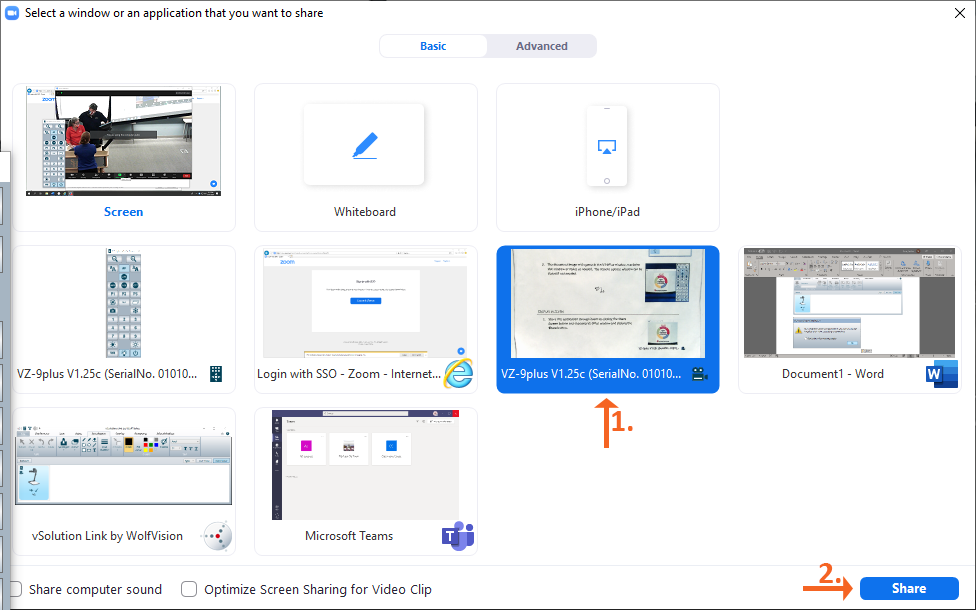

    In the Sharing options:

    1. Select VZ-9pluc V1.25c.
    2. Select Share.

    Share Screen vSolution

    The doc cam will now be shared.

    Once you no longer need the doc cam, stop sharing the screen in Zoom, then select the X in the vSolution software to close the software.

    Note: On the Control Panel, be sure PC is selected if sharing with Zoom. If you change it to doc cam, there will be no audio from those viewing in Zoom.

  • Elmo P30HD

    To use the Elmo P30HD doc camera in a classroom, watch the video or follow the step-by-step instructions below the video.

    1. Power on the document camera
    2. Push the doc cam button on the control panel
    3. Then place the document on the document camera.

    This will display the document on the projector screen.

    To use the Elmo P30HD doc camera with Zoom in a classroom, watch the video or follow the step-by-step instructions below the video.

    Power on the system using the control panel, log into the computer, open and log into Zoom.

    Open the drawer where the doc cam is, lift the arm of the doc cam and press the power button to power on.  The power button will light up blue when powered on.

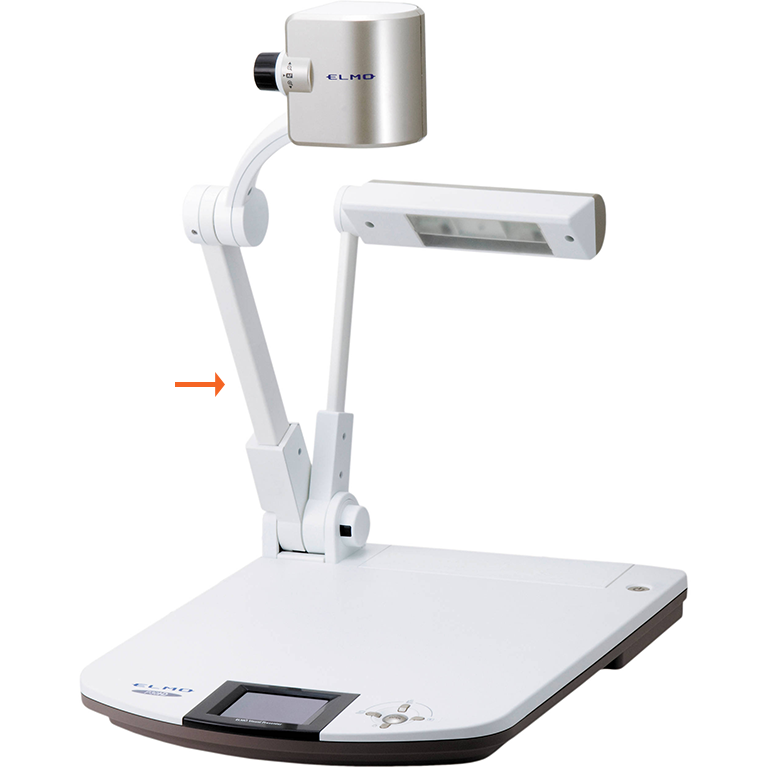

    ELMO-P30HD

    Open the ELMO Interactive Toolbox software from the computer desktop.

    Elmo Software on Desktop

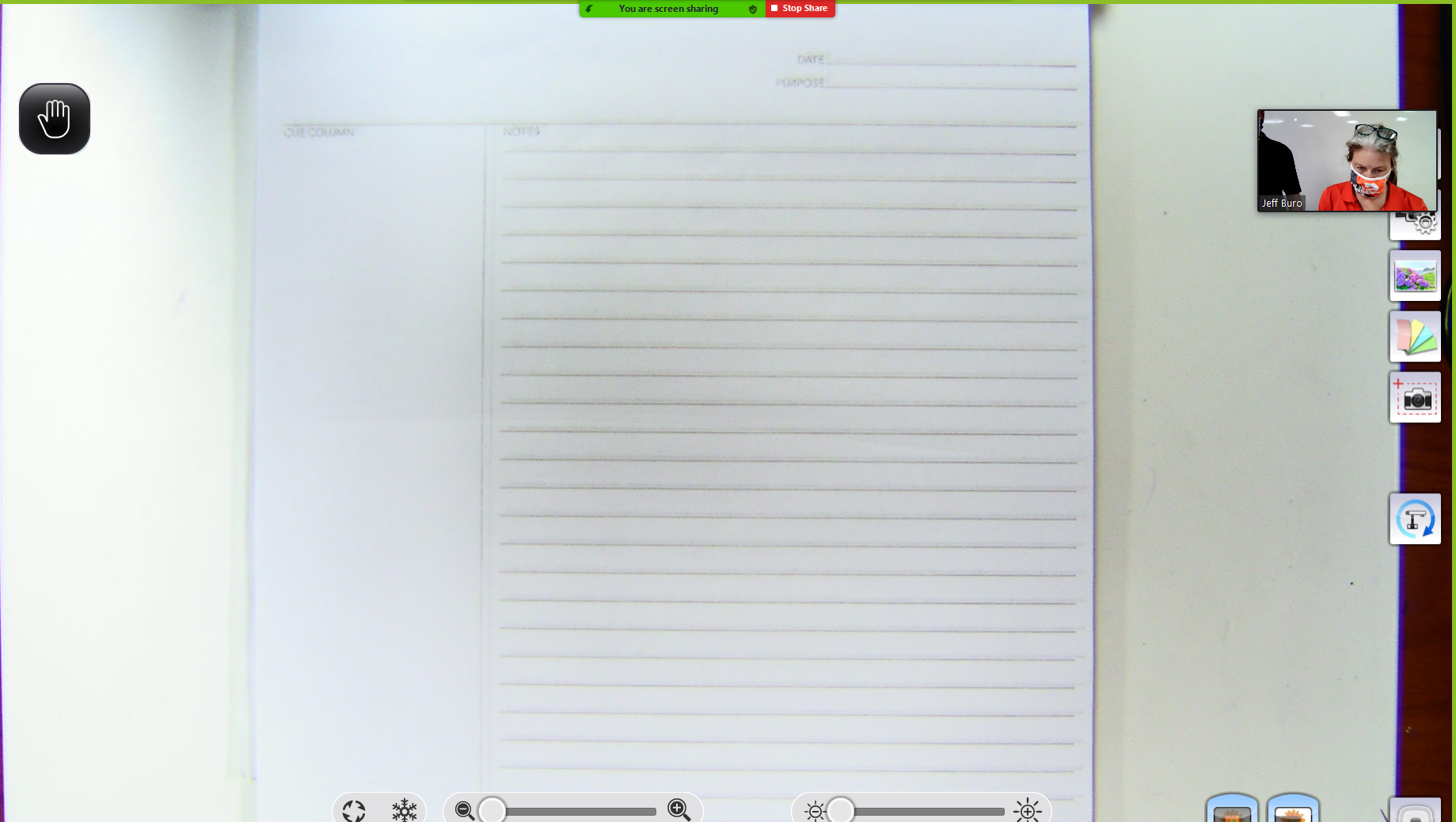

    The software will launch.

    Elmo P30 Shared

    If the Zoom meeting has not been started yet, start the Zoom meeting.

    In the Zoom meeting options, select Share.

    ZoomOptionsShare

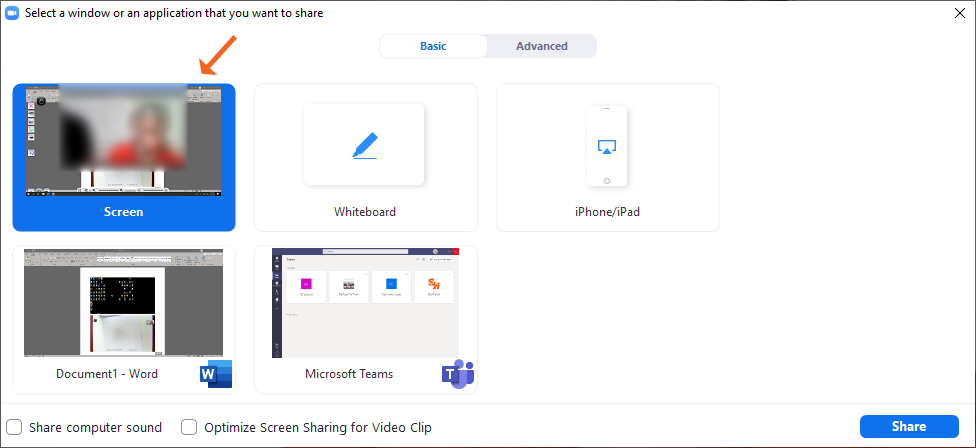

    In the Sharing options:

    1. Select Screen.
    2. Select Share.

    Share Screen Options Share Whole Screen

    The doc cam will now be shared.

    Once you no longer need the doc cam, stop sharing the screen in Zoom, then select the X in the ELMO Interactive Toolbox software to close the software.

    Note: On the Control Panel, be sure PC is selected if sharing with Zoom. If you change it to doc cam, there will be no audio from those viewing in Zoom.

  • Lumens

    To use the Lumens doc camera in a classroom, watch the video or follow the step-by-step instructions below the video.

    1. Power on the document camera
    2. Push the doc cam button on the control panel
    3. Then place the document on the document camera.

    This will display the document on the projector screen.

    To use the Lumens doc camera with Zoom in a classroom, watch the video or follow the step-by-step instructions below the video.

    Power on the system using the control panel, log into the computer, open and log into Zoom.

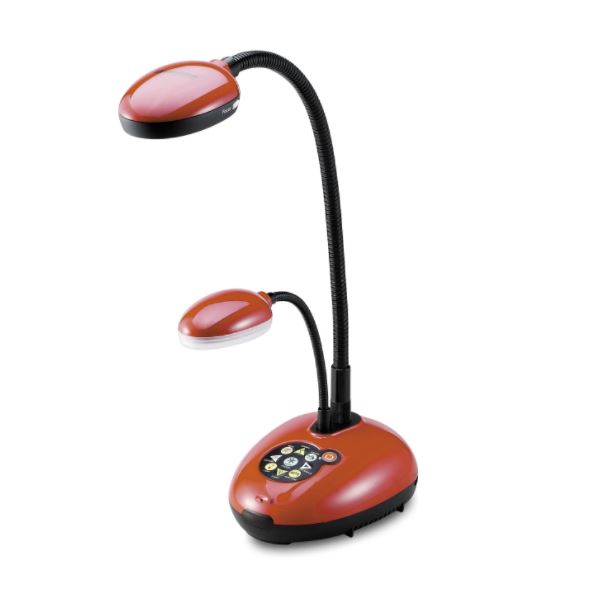

    Power on the doc cam using the Power button. The power button will light up with a blue color when on.

    lumens

    Place the document to be displayed with the doc cam on the counter under the doc cam lens.

    If the Zoom meeting has not been started yet, start the Zoom meeting.

    In the Zoom meeting options, select Share.

    Zoom Options Share

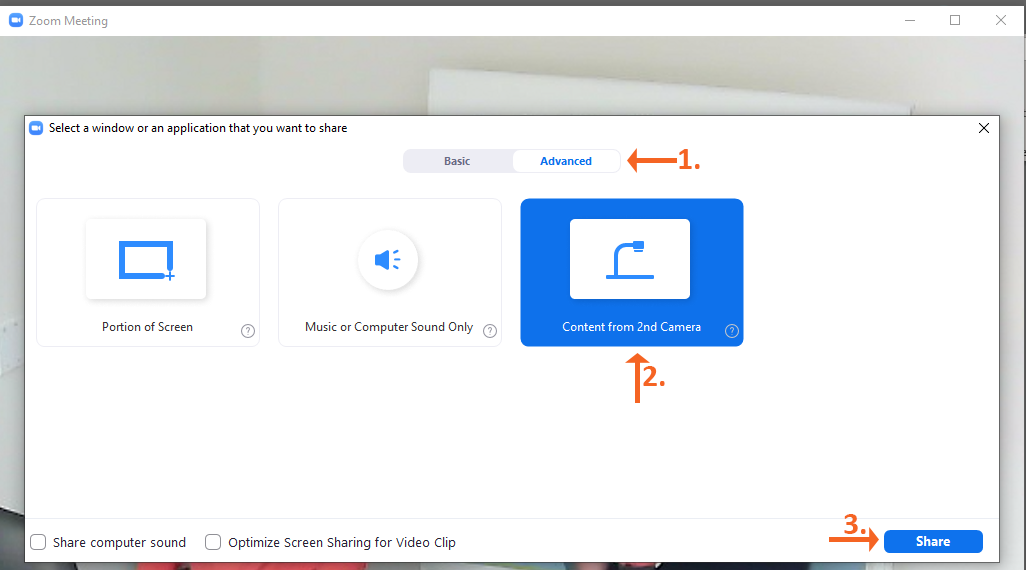

    In the Sharing options:

    1. Select Advanced.
    2. Select Content from 2nd Camera.
    3. Select Share.

    Share Screen Advance Settings Lumens

    The doc cam will now be shared.

    Once you no longer need the doc cam, stop sharing the screen in Zoom.

    Note: On the Control Panel, be sure PC is selected if sharing with Zoom. If you change it to doc cam, there will be no audio from those viewing in Zoom.

  • Elmo LX-1 and MO-2

    To use the Elmo LX-1 or MO-2 doc camera in a classroom, watch the video or follow the step-by-step instructions below the video.

    1. Power on the document camera
    2. Push the doc cam button on the control panel
    3. Then place the document on the document camera.

    This will display the document on the projector screen.

    To use the Elmo LX-1 or MO-2 doc camera with Zoom in a classroom, watch the video or follow the step-by-step instructions below the video.

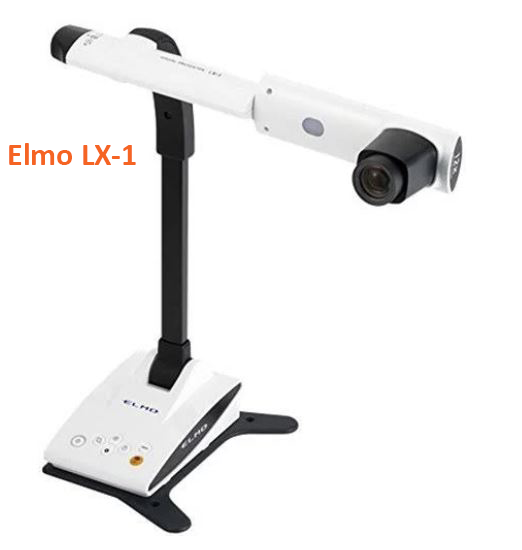

    Power on the doc cam using the Power button. The power button will light up with a blue color when on.

    ELMO-LX-1

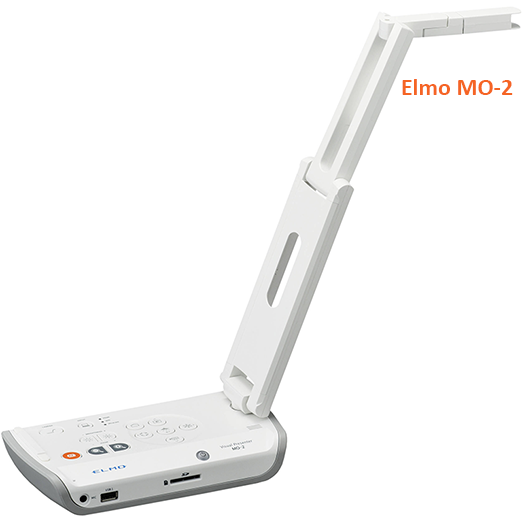

    ELMO-MO-2

    Place the document to be displayed with the doc cam on the counter under the doc cam lens.

    If the Zoom meeting has not been started yet, start the Zoom meeting.

    In the Zoom meeting options, select Share.

    Zoom Options Share

    In the Sharing options:

    1. Select Advanced.
    2. Select Content from 2nd Camera.
    3. Select Share.

    Share Screen Advance Settings Lumens

    The doc cam will now be shared.

    Once you no longer need the doc cam, stop sharing the screen in Zoom.

    Note: On the Control Panel, be sure PC is selected if sharing with Zoom. If you change it to doc cam, there will be no audio from those viewing in Zoom.
