Connecting to a Network Drive

Connecting, also known as mapping, to a network drive in Windows Explorer can make accessing the drive easier and quicker. For more information on how to connect to a network drive, select the operating system of choice.

  • Windows

    Click on the folder icon in the taskbar button or select press the Windows key + E to open Windows Explorer.

    Open Windows Explorer

    Select Map network drive from the toolbar of Windows Explorer.

    Windows Explorer

    Enter in the information requested to map the file share and select Finish.

    Map Network Drive

    Note: It does not matter what drive letter is selected. If this is a file share that will be used regularly, keep the “Reconnect at logon” option checked.

  • Mac

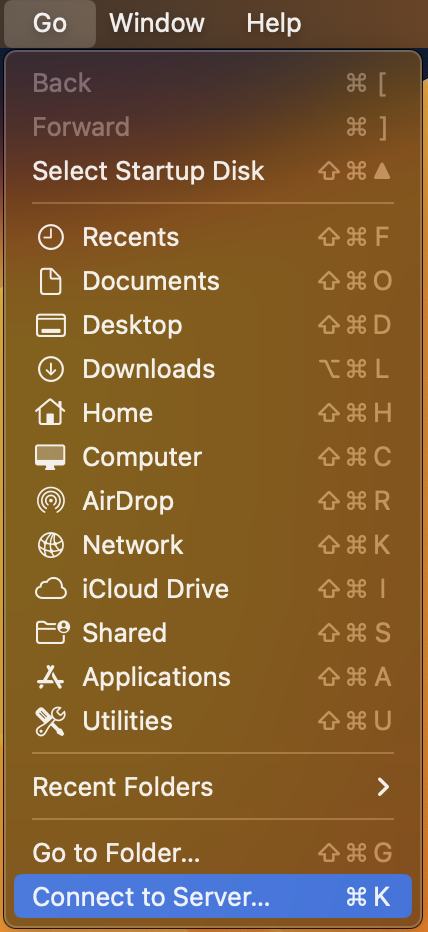

    Click on the Go menu and select Connect to Server, (or press Command+K).

    Connect to Server

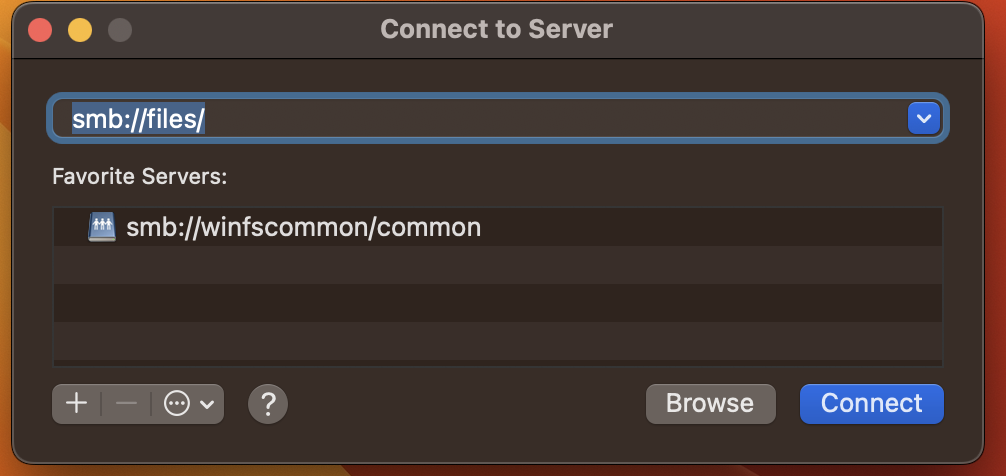

    The Connect to Server window will open. Type the location (example: smb://winfscommon/common) in the Server Address area. Click Connect.

    Note: You can add regularly visited file share locations as a favorite by clicking the add (+) button to the right of the Server Address area. The location will then save under Favorite Servers.

    Enter Server Address

    You will see the Connecting to Server window open.

    Connecting to Server

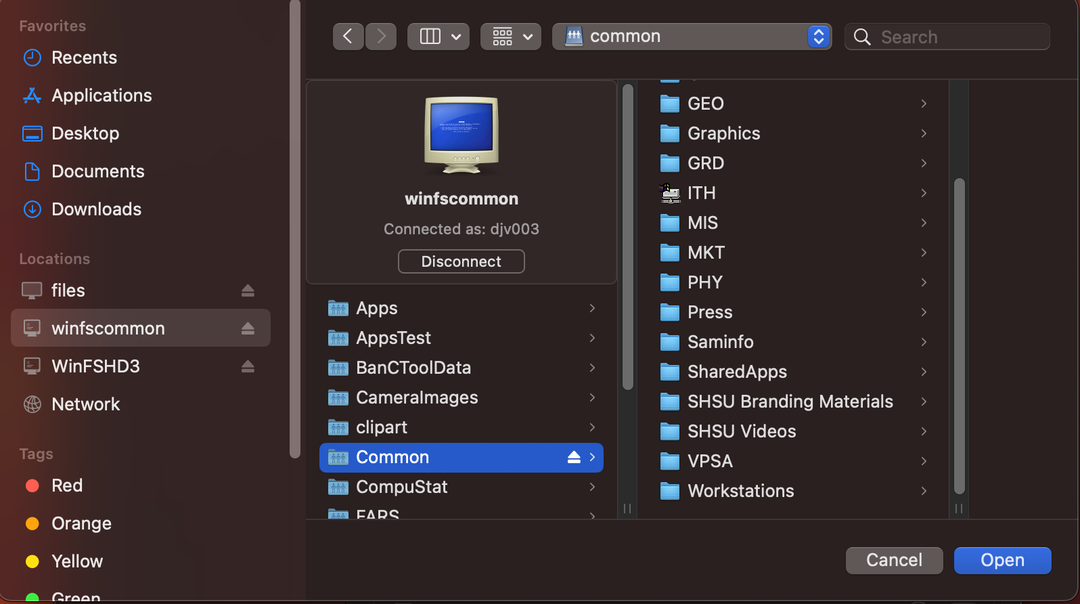

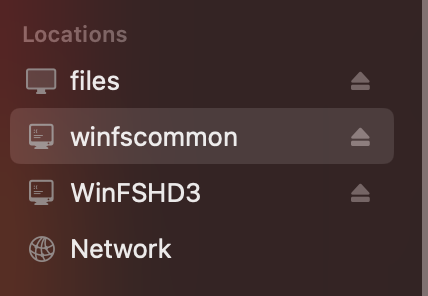

    Once you’re connected, your Network Drive will be found in the Finder window under Shared.

    Network Shares

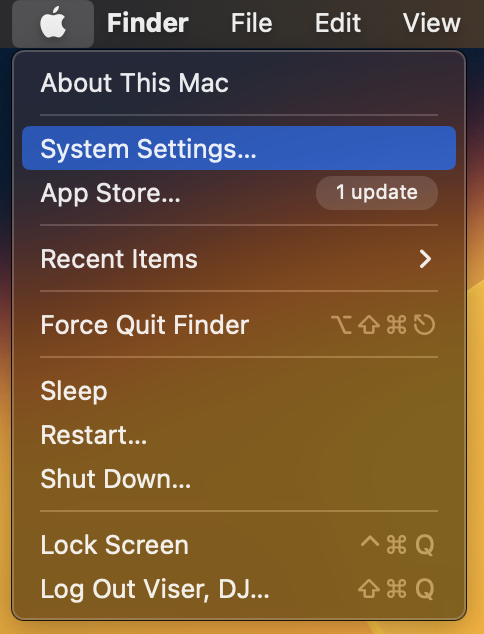

    To have your Network Drive connect automatically connect when you login, go to System Preferences.

    Note: You must have already mapped to your Network Drive before doing this.

    Select System Preferences

    Click on Users & Groups under System.

    System Preferences

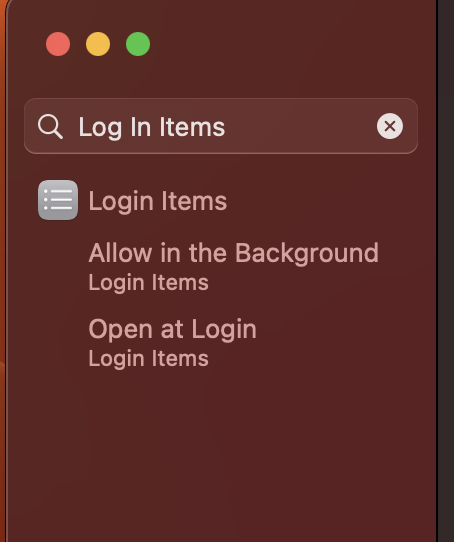

    In the Users & Groups window, click on Login Items right above Change Password.

    Users and Groups

    Click on the add (+) button.

    Select Add Button

    Select your drives from the list and click Add.

    Select Add

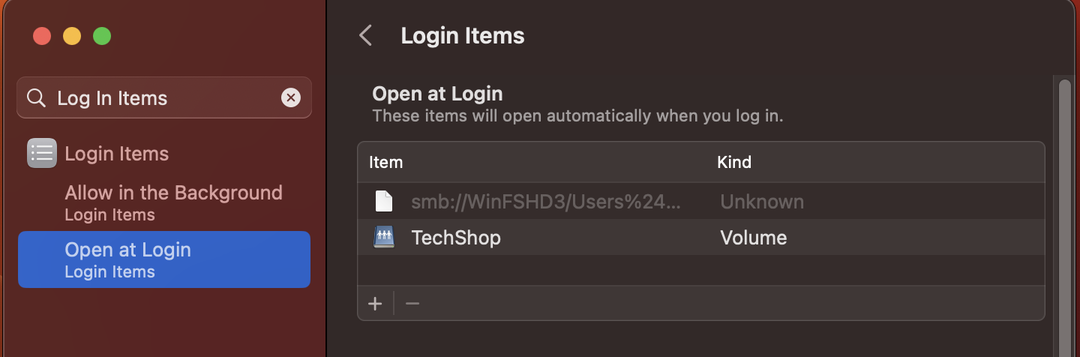

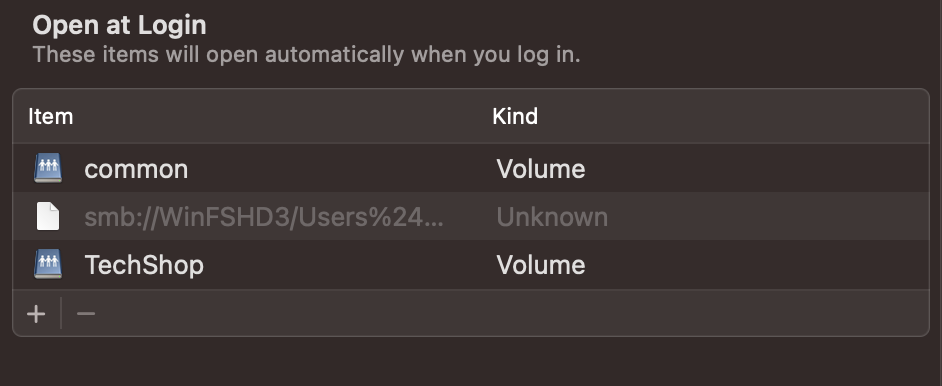

    They will now appear in the automatic login list.

    Drive Added
